Kit Overview

  • Thrust Bearing Carrier Needs to be Modified
  • Must Use the Factory Gearbox from either the ZD30, TB42, TB45 or TD42 Engines
  • The Firewall May Need Modifying
  • A New Factory Nissan Thrust Bearing is Required (We Do Not Stock)
  • Pressure Plate Part # 1000-509 is Recommended (We Do Not Stock)
    •


    Kit Includes

    Part Part # Qty

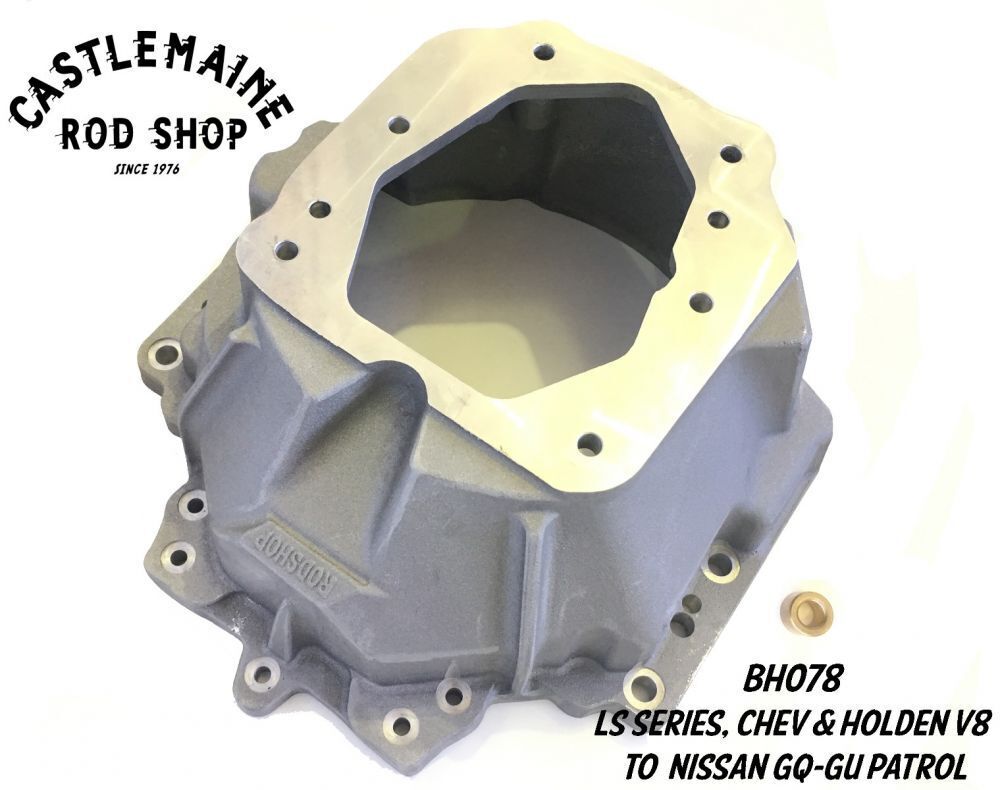

    Bellhousing bh078a 1
    Bolt Kit bh078a-bolt-kit 1
    Spigot Bush sb60 1
    Thrust Extension te02 1
    Washer washer02 4


    Optional Extras Available for Purchase Below

    Part Part #
    Clutch Plate r12063w
    Dust Cover dust24


    Images are for Illustrative Purposes Only and May Not give a True Indication of the Product

    Installation Guide can be Viewed by Clicking on the Blue Icon in the Image List

    Kit Overview

  • Thrust Bearing Carrier Needs to be Modified
  • Must Use the Factory Gearbox from either the ZD30, TB42, TB45 or TD42 Engines
  • The Firewall May Need Modifying
  • A New Factory Nissan Thrust Bearing is Required (We Do Not Stock)
  • Pressure Plate Part # 1000-509 is Recommended (We Do Not Stock)
    •


    Kit Includes

    Part Part # Qty
    Bellhousing bh078a 1
    Bolt Kit bh078a-bolt-kit 1
    Spigot Bush sb60 1
    Thrust Extension te02 1
    Washer washer02 4


    Optional Extras Available for Purchase Below

    Part Part #
    Clutch Plate r12063w
    Dust Cover dust24


    Images are for Illustrative Purposes Only and May Not give a True Indication of the Product

    Installation Guide can be Viewed by Clicking on the Blue Icon in the Image List

    SKU bh078akithv8ngq
    Brand Castlemaine Rod Shop
    Shipping Weight 12.0000kg
    Shipping Width 0.520m
    Shipping Height 0.220m
    Shipping Length 0.520m
